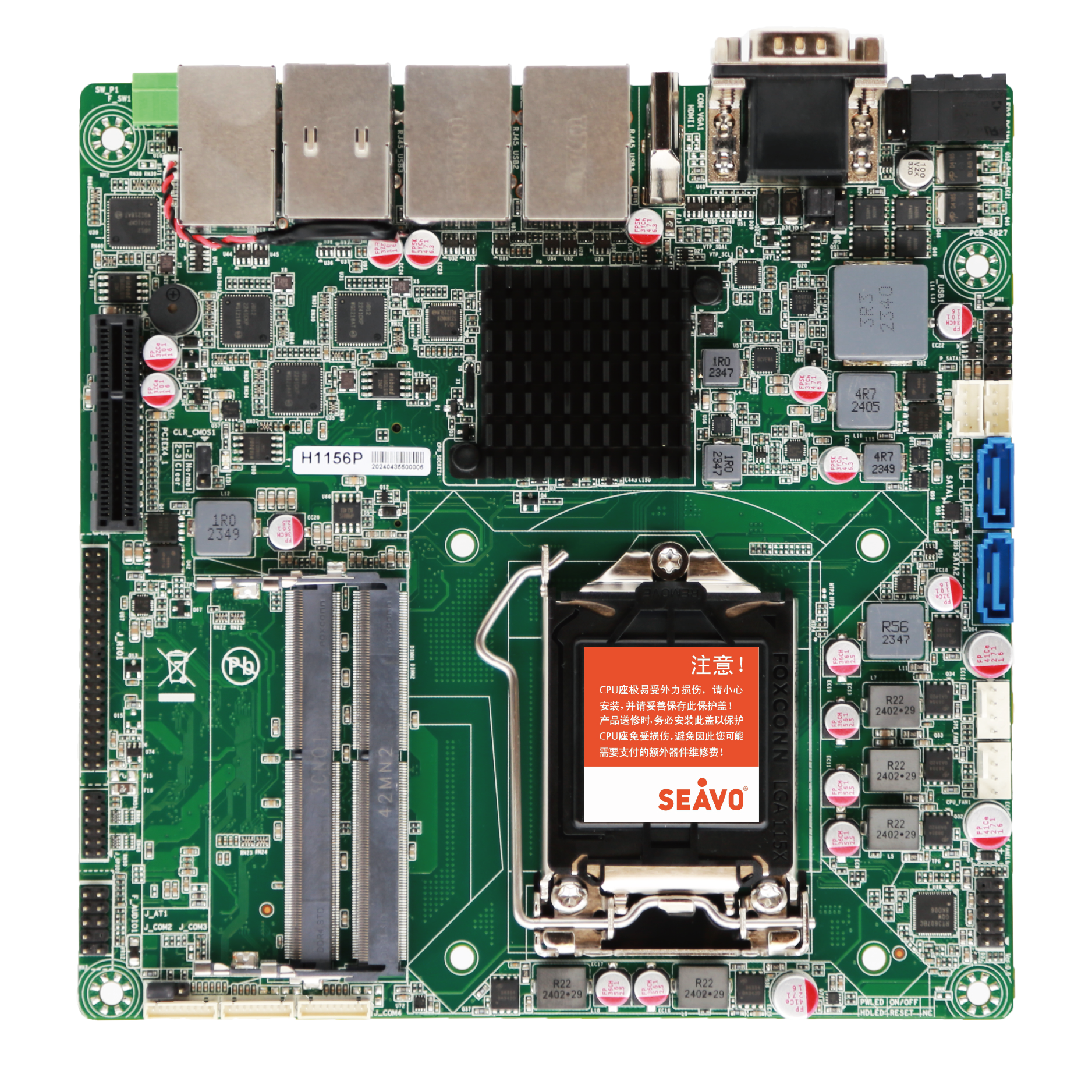

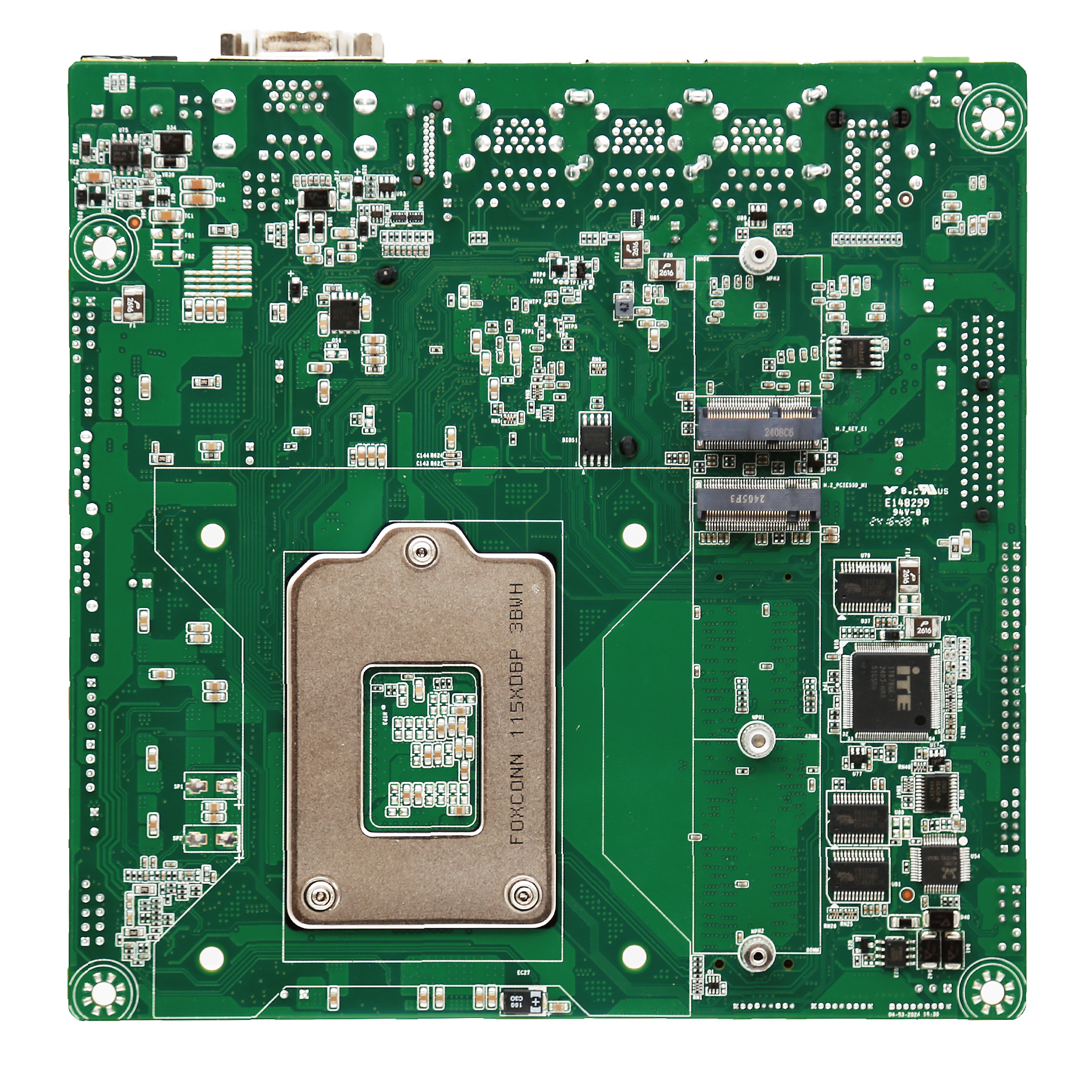

sv1-h1156p

intel 6/7/8/9th i3/i5/i7处理器, h610/q170芯片, 5*千兆网口, 支持光源控制器, dc 24v供电

支持intel 6/7/8/9th core 处理器
采用h110/q170芯片组
5*千兆网口, 9*usb, 6*com
2*sata, 2*m.2, 1*pcie x4
mini-itx, dc 24v供电
规格
general
cpu
intel® 6/7/8/9th coretm cpu
chipset
intel® h110/q170, tdp 6w
memory
ddr4-2600, 2*so-dimm, up to 32 gb
storage

2*sata 3.0

1*m.2 (key-m, 2280, sata for h110, sata/nvme for q170, ssd)
expansion

1*m.2 (key-e, 2230, pcie usb 2.0, wifi bt module)

1*pcie x4
bios
ami uefi bios
os windows 7/10/11, linux

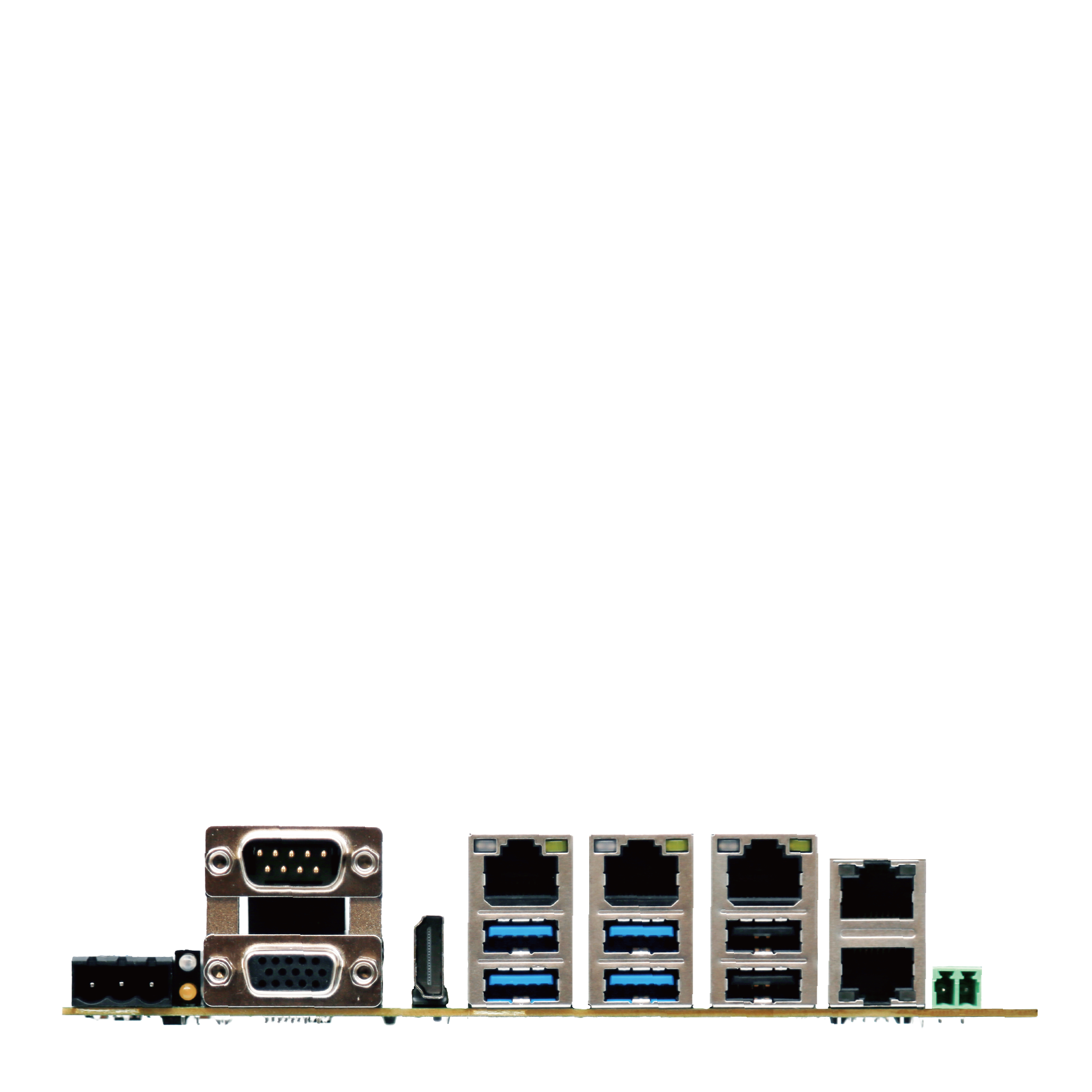

i/o
ethernet

5*intel® gbe controller, rj45

serial
2*rs232/rs485, 2*rs232, 2*ttl
usb

h110: 4*usb3.2, 5*usb 2.0

q170: 6*usb 3.2, 3*usb 2.0
audio
realtek® alc897 5.1 channel hda codec with mic and line-out
gpio
8*programmable gpio
others 1*lpc, 1*smbus
display
display interface

1*hdmi 1.4, max resolution up to 1920*1080@60hz

1*vga, max resolution up to 1920*1080@60hz
multiple display
dual
mechanical & environment
dimension
mini-itx (170*170mm)
power input
dc 24v (12v optional)
temperature operation: 0℃~60℃, storage: -40℃~85℃
relative humidity
5%~95%, non-condensing
